Ray Dashboard#

Ray provides a web-based dashboard for monitoring and debugging Ray applications. The dashboard provides a visual representation of the system state, allowing users to track the performance of their applications and troubleshoot issues.

Common Workflows#

Here are common workflows when using the Ray dashboard.

Getting Started#

To use the dashboard, you should use the ray[default] installation:

pip install -U "ray[default]"

You can access the dashboard through a URL printed when Ray is initialized (the default URL is http://localhost:8265) or via the context object returned from ray.init.

context = ray.init()
print(context.dashboard_url)
INFO worker.py:1487 -- Connected to Ray cluster. View the dashboard at 127.0.0.1:8265.

Ray cluster comes with the dashboard. See Cluster Monitoring for more details.

Note

When using the Ray dashboard, it is highly recommended to also set up Prometheus and Grafana. They are necessary for critical features such as Metrics View. See Ray Metrics to learn how to set up Prometheus and Grafana.

How to Guides#

View the application logs and errors#

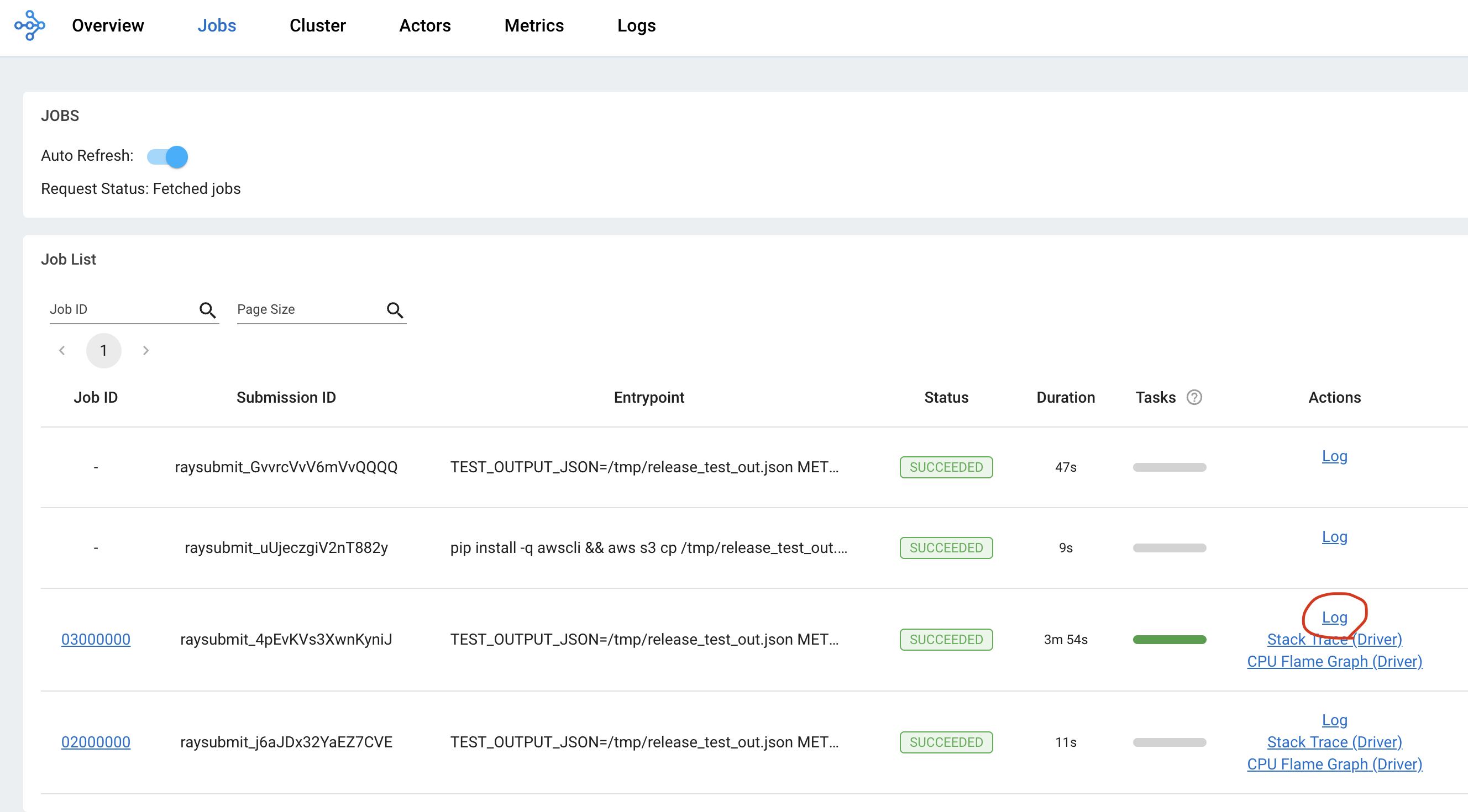

Driver Logs

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/log_button_at_job.png

If the Ray job is submitted by Ray job API, the job logs are available from the dashboard. The log file follows the following format; job-driver-<job_submission_id>.log.

Note

If the driver is executed directly on the head node of the Ray cluster (without the job API) or run via Ray client, the driver logs are not accessible from the dashboard. In this case, see the terminal output to view the driver logs.

Task and Actor Logs

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/actor_log.png https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/task_log.png

Task and actor logs are accessible from the task and actor table view. Click the log button. You can see the worker logs (worker-[worker_id]-[job_id]-[pid].[out|err]) that execute the task and actor. .out (stdout) and .err (stderr) logs contain the logs emitted from the tasks and actors. The core worker logs (python-core-worker-[worker_id]_[pid].log) contain the system-level logs for the corresponding worker.

Task and Actor Errors

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/failed_task_progress-bar.png

You can easily identify failed tasks or actors by looking at the job progress bar, which links to the table.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/task_error_button.png

The table displays the name of the failed tasks or actors and provides access to their corresponding log or error messages.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/task_error_box.png

Analyze the CPU and memory usage of tasks and actors#

The Metrics View in the Ray dashboard provides a “per-component CPU/memory usage graph” that displays CPU and memory usage over time for each task and actor in the application (as well as system components). This allows users to identify tasks and actors that may be consuming more resources than expected and optimize the performance of the application.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/node_cpu_by_comp.png

Per component CPU graph. 0.379 cores mean that it uses 40% of a single CPU core. Ray process names start with ray::. raylet, agent, dashboard, or gcs are system components.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/node_memory_by_comp.png

Per component memory graph. Ray process names start with ray::. raylet, agent, dashboard, or gcs are system components.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/cluster_page.png

Additionally, users can see a snapshot of hardware utilization from the cluster page, which provides an overview of resource usage across the entire Ray cluster.

View the Resource Utilization#

Ray requires users to specify the number of resources their tasks and actors will use through arguments such as num_cpus, num_gpus, memory, and resource. These values are used for scheduling, but may not always match the actual resource utilization (physical resource utilization).

  • You can see the logical and physical resource utilization over time from the Metrics View.

  • The snapshot of physical resource utilization (CPU, GPU, memory, disk, network) is also available from the Cluster View.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/logical_resource.png

The logical resources usage.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/physical_resource.png

The physical resources (hardware) usage. Ray provides CPU, GPU, Memory, GRAM, disk, and network usage for each machine in a cluster.

Overview#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/overview-page.png

The overview page provides a high-level status of the Ray cluster.

Overview Metrics

The Overview Metrics page provides the cluster-level hardware utilization and autoscaling status (number of pending, active, and failed nodes).

Recent Jobs

The Recent Jobs card provides a list of recently submitted Ray jobs.

Event View

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/event-page.png

The Event View displays a list of events associated with a specific type (e.g., autoscaler or job) in chronological order. The same information is accessible with the ray list cluster-events (Ray state APIs) CLI commands .

Two types of events are available.

Jobs View#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/jobs.png

The Jobs View lets you monitor the different jobs that ran on your Ray cluster.

A job is a ray workload that uses Ray APIs (e.g., ray.init). It can be submitted directly (e.g., by executing a Python script within a head node) or via Ray job API.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/job_list.png

The job page displays a list of active, finished, and failed jobs, and clicking on an ID allows users to view detailed information about that job. For more information on Ray jobs, see the Ray Job Overview section.

Job Profiling#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/profile-job.png

You can profile Ray jobs by clicking on the “Stack Trace” or “CPU Flame Graph” actions. See the Dashboard Profiling for more details.

Advanced Task and Actor Breakdown#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/advanced-progress.png

The job page allows you to see tasks and actors broken down by their states. Tasks and actors are grouped and nested by default. You can see the nested entries by clicking the expand button.

Tasks and actors are grouped and nested by the following criteria.

  • All tasks and actors are grouped together, and you can view individual entries by expanding the corresponding row.

  • Tasks are grouped by their name attribute (e.g., task.options(name="<name_here>").remote()).

  • Child tasks (nested tasks) are nested under their parent task’s row.

  • Actors are grouped by their class name.

  • Child actors (actors created within an actor) are nested under their parent actor’s row.

  • Actor tasks (remote methods within an actor) are nested under the actor for the corresponding actor method.

Note

Ray dashboard can only display or retrieve up to 10K tasks at a time. If there are more than 10K tasks from your job, they are unaccounted. The number of unaccounted tasks is available from the task breakdown.

Task Timeline#

The timeline API is available from the dashboard.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/profile-button.png

First, you can download the chrome tracing file by clicking the download button.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/profile_drag.png

Second, you can use tools like chrome://tracing or the Perfetto UI and drop the downloaded chrome tracing file. We will use the Perfetto as it is the recommendation way to visualize chrome tracing files.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/timeline.png

Now, you can see the timeline visualization of Ray tasks and actors. There are Node rows (hardware) and Worker rows (processes). Each worker rows display a list of events (e.g., task scheduled, task running, input/output deserialization, etc.) happening from that worker over time.

Ray Status#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/ray-status.png

The job page displays the output of the CLI tool ray status, which shows the autoscaler status of the Ray cluster.

The left page shows the autoscaling status, including pending, active, and failed nodes. The right page displays the cluster’s demands, which are resources that cannot be scheduled to the cluster at the moment. This page is useful for debugging resource deadlocks or slow scheduling.

Note

The output shows the aggregated information across the cluster (not by job). If you run more than one job, some of the demands may come from other jobs.

Task Table, Actor Table, Placement Group Table#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/tables.png

The dashboard shows a table with the status of the job’s tasks, actors, and placement groups. You get the same information from the Ray state APIs.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/task-table.png

You can expand the table to see a list of each task, actor, and placement group.

Serve View#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/serve.png

The Serve view lets you monitor the status of your Ray Serve applications.

The initial page showcases your general Serve configurations, a list of the Serve applications, and, if you have Grafana and Prometheus configured, some high-level metrics of all your Serve applications. Click the name of a Serve application to go to the Serve Application Detail Page.

Serve Application Detail Page#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/serve-application.png

This page shows the Serve application’s configurations and metadata. It also lists the Serve deployments and replicas. Click the expand button of a deployment to see all the replicas in that deployment.

For each deployment, there are two available actions. You can view the Deployment config and, if you configured Grafana and Prometheus, you can open a Grafana dashboard with detailed metrics about that deployment.

For each replica, there are two available actions. You can see the logs of that replica and, if you configured Grafana and Prometheus, you can open a Grafana dashboard with detailed metrics about that replica. Click on the replica name to go to the Serve Replica Detail Page.

Serve Replica Detail Page#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/serve-replica.png

This page shows metadata about the Serve replica, high-level metrics about the replica if you configured Grafana and Prometheus, and a history of completed tasks of that replica.

Serve Metrics#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/serve-metrics.png

Ray serve exports various time-series metrics to understand the status of your Serve application over time. More details of these metrics can be found here. In order to store and visualize these metrics, you must set up Prometheus and Grafana by following the instructions here.

These metrics are available in the Ray dashboard in the Serve page and the Serve Replica Detail page. They are also accessible as Grafana dashboards. Within the Grafana dashboard, use the dropdown filters on the top to filter metrics by route, deployment, or replica. Exact descriptions of each graph are available by hovering over the “info” icon on the top left of each graph.

Cluster View#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard/nodes-view-expand.png

The cluster view visualizes hierarchical relationship of machines (nodes) and workers (processes). Each host consists of many workers, and you can see them by clicking the + button. This also shows the assignment of GPU resources to specific actors or tasks.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard/node-detail.png

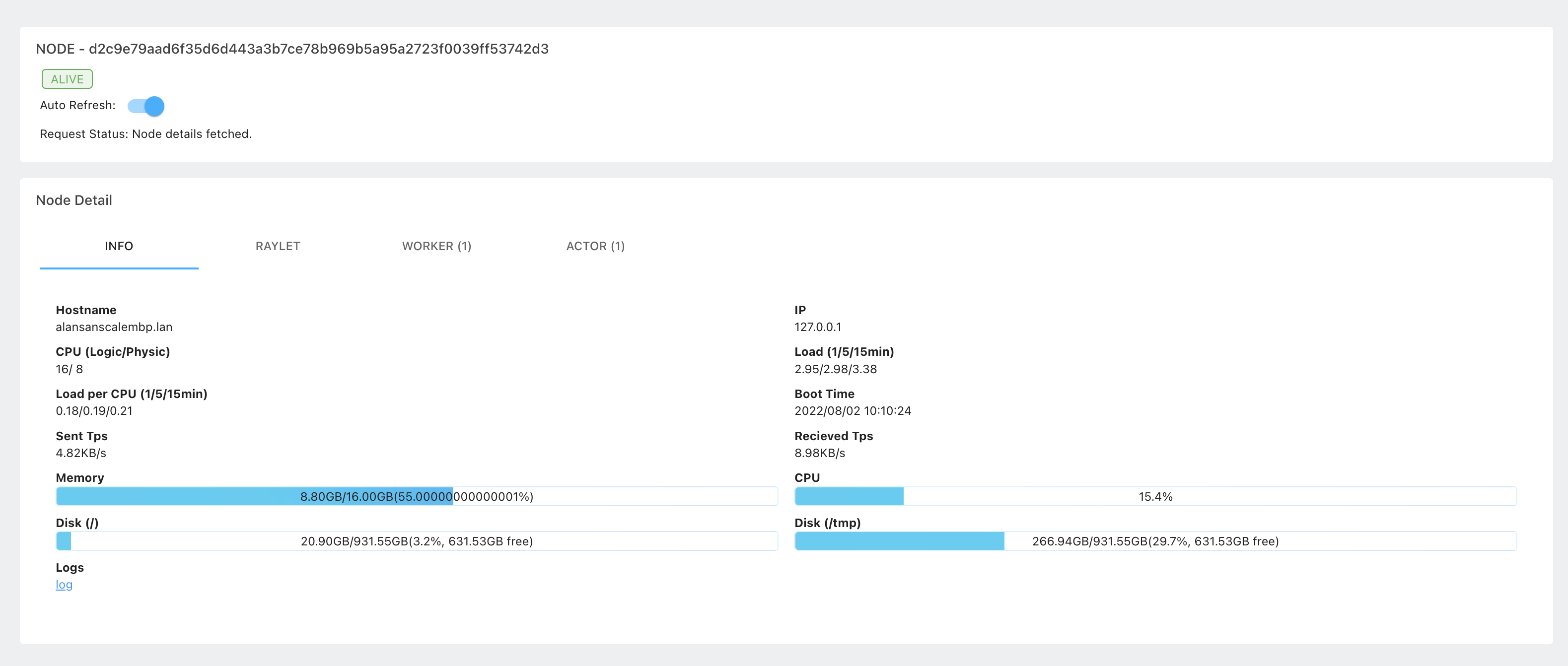

You can also click the node id to go into a node detail page where you can see more information.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/machine-view-log.png

In addition, the machine view lets you see logs for a node or a worker.

Actors View#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/actor-page.png

The Actors view lets you see information about the actors that have existed on the ray cluster.

You can view the logs for an actor and you can see which job created the actor. The information of up to 1000 dead actors will be stored. This value can be overridden by using the RAY_DASHBOARD_MAX_ACTORS_TO_CACHE environment variable when starting Ray.

Actor Profiling#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/actor-profiling.png

You can also run the profiler on a running actor. See Dashboard Profiling for more details.

Actor Detail Page#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/actor-list-id.png

By clicking the ID, you can also see the detail view of the actor.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard-v2/dashboard-pics/actor-detail.png

From the actor detail page, you can see the metadata, state, and the all tasks that have run from this actor.

Metrics View#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard/metrics.png

Ray exports default metrics which are available from the Metrics View. Here are some available example metrics.

  • The tasks, actors, and placement groups broken down by states.

  • The logical resource usage across nodes.

  • The hardware resource usage across nodes.

  • The autoscaler status.

See System Metrics Page for available metrics.

Note

The metrics view required the Prometheus and Grafana setup. See Ray Metrics to learn how to set up Prometheus and Grafana.

The metrics view lets you view visualizations of the time series metrics emitted by Ray.

You can select the time range of the metrics in the top right corner. The graphs refresh automatically every 15 seconds.

There is also a convenient button to open the grafana UI from the dashboard. The Grafana UI provides additional customizability of the charts.

Logs View#

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard/logs.png

The logs view lets you view all the ray logs that are in your cluster. It is organized by node and log file name. Many log links in the other pages link to this view and filter the list so the relevant logs appear.

To understand the log file structure of Ray, see the Logging directory structure page.

https://raw.githubusercontent.com/ray-project/Images/master/docs/new-dashboard/logs-content.png

The logs view provides search functionality to help you find specific log messages.

Advanced Usage#

Changing Dashboard Ports#

CLI

To customize the port on which the dashboard runs, you can pass the --dashboard-port argument with ray start in the command line.

ray.init

If you need to customize the port on which the dashboard will run, you can pass the keyword argument dashboard_port in your call to ray.init().

To disable the dashboard while using the “VM cluster launcher”, include the “ray start –head –include-dashboard=False” argument and specify the desired port number in the “head_start_ray_commands” section of the cluster launcher’s YAML file.

Viewing Built-in Dashboard API Metrics#

The dashboard is powered by a server that serves both the UI code and the data about the cluster via API endpoints. There are basic Prometheus metrics that are emitted for each of these API endpoints:

ray_dashboard_api_requests_count_requests_total: Collects the total count of requests. This is tagged by endpoint, method, and http_status.

ray_dashboard_api_requests_duration_seconds_bucket: Collects the duration of requests. This is tagged by endpoint and method.

For example, you can view the p95 duration of all requests with this query:

histogram_quantile(0.95, sum(rate(ray_dashboard_api_requests_duration_seconds_bucket[5m])) by (le))

These metrics can be queried via Prometheus or Grafana UI. Instructions on how to set these tools up can be found here.

Running Behind a Reverse Proxy#

The dashboard should work out-of-the-box when accessed via a reverse proxy. API requests don’t need to be proxied individually.

Always access the dashboard with a trailing / at the end of the URL. For example, if your proxy is set up to handle requests to /ray/dashboard, view the dashboard at www.my-website.com/ray/dashboard/.

The dashboard now sends HTTP requests with relative URL paths. Browsers will handle these requests as expected when the window.location.href ends in a trailing /.

This is a peculiarity of how many browsers handle requests with relative URLs, despite what MDN defines as the expected behavior.

Make your dashboard visible without a trailing / by including a rule in your reverse proxy that redirects the user’s browser to /, i.e. /ray/dashboard –> /ray/dashboard/.

Below is an example with a traefik TOML file that accomplishes this:

[http]
  [http.routers]
    [http.routers.to-dashboard]
      rule = "PathPrefix(`/ray/dashboard`)"
      middlewares = ["test-redirectregex", "strip"]
      service = "dashboard"
  [http.middlewares]
    [http.middlewares.test-redirectregex.redirectRegex]
      regex = "^(.*)/ray/dashboard$"
      replacement = "${1}/ray/dashboard/"
    [http.middlewares.strip.stripPrefix]
      prefixes = ["/ray/dashboard"]
  [http.services]
    [http.services.dashboard.loadBalancer]
      [[http.services.dashboard.loadBalancer.servers]]
        url = "http://localhost:8265"

Disabling the Dashboard#

Dashboard is included in the ray[default] installation by default and automatically started.

To disable the dashboard, use the following arguments --include-dashboard.

CLI

ray start --include-dashboard=False

ray.init

ray.init(include_dashboard=False)

To disable the dashboard while using the “VM cluster launcher”, include the “ray start –head –include-dashboard=False” argument in the “head_start_ray_commands” section of the cluster launcher’s YAML file.

TODO

Page References#

Cluster View#

Cluster View Node Table Reference#

Term

Description

State

Whether the node or worker is alive or dead.

ID

The ID of the node or the workerId for the worker.

Host / Cmd line

If it is a node, it shows host information. If it is a worker, it shows the name of the task that is being run.

IP / PID

If it is a node, it shows the IP address of the node. If it’s a worker, it shows the PID of the worker process.

CPU Usage

CPU usage of each node and worker.

Memory

RAM usage of each node and worker.

GPU

GPU usage of the node.

GRAM

GPU memory usage of the node.

Object Store Memory

Amount of memory used by the object store for this node.

Disk

Disk usage of the node.

Sent

Network bytes sent for each node and worker.

Received

Network bytes received for each node and worker.

Log

Logs messages at each node and worker. You can see log files relevant to a node or worker by clicking this link.

Stack Trace

Get the Python stack trace for the specified worker. Refer to Python CPU Profiling in the Dashboard for more information.

CPU Flame Graph

Get a CPU flame graph for the specified worker. Refer to Python CPU Profiling in the Dashboard for more information.

Jobs View#

Jobs View Reference#

Term

Description

Job ID

The ID of the job. This is the primary id that associates tasks and actors to this job.

Submission ID

An alternate ID that can be provided by a user or generated for all ray job submissions. It’s useful if you would like to associate your job with an ID that is provided by some external system.

Status

Describes the state of a job. One of:
  • PENDING: The job has not started yet, likely waiting for the runtime_env to be set up.

  • RUNNING: The job is currently running.

  • STOPPED: The job was intentionally stopped by the user.

  • SUCCEEDED: The job finished successfully.

  • FAILED: The job failed.

Logs

A link to the logs for this job.

StartTime

The time the job was started.

EndTime

The time the job finished.

DriverPid

The PID for the driver process that is started the job.

Actors#

Actor View Reference#

Term

Description

Actor ID

The ID of the actor.

Restart Times

Number of times this actor has been restarted.

Name

The name of an actor. This can be user defined.

Class

The class of the actor.

Function

The current function the actor is running.

Job ID

The job in which this actor was created.

Pid

ID of the worker process on which the actor is running.

IP

Node IP Address where the actor is located.

Port

The Port for the actor.

State

Either one of “ALIVE” or “DEAD”.

Log

A link to the logs that are relevant to this actor.

Stack Trace

Get the Python stack trace for the specified actor. Refer to Python CPU Profiling in the Dashboard for more information.

CPU Flame Graph

Get a CPU flame graph for the specified actor. Refer to Python CPU Profiling in the Dashboard for more information.

Resources#
